With the Multi-Mover L25-s electric power tug for trailers, you can easily move and precisely manoeuvre caravans, trailers and trolleys weighing up to 3000 kg.
The Multi-Mover L25-s is versatile and, compared to other Multi-Movers, is very compact, foldable and therefore easy to transport. This model is ideal for single-axle trailers and is also frequently used in industry.
This model is available from 300kg, sufficient weight for traction and safe braking.

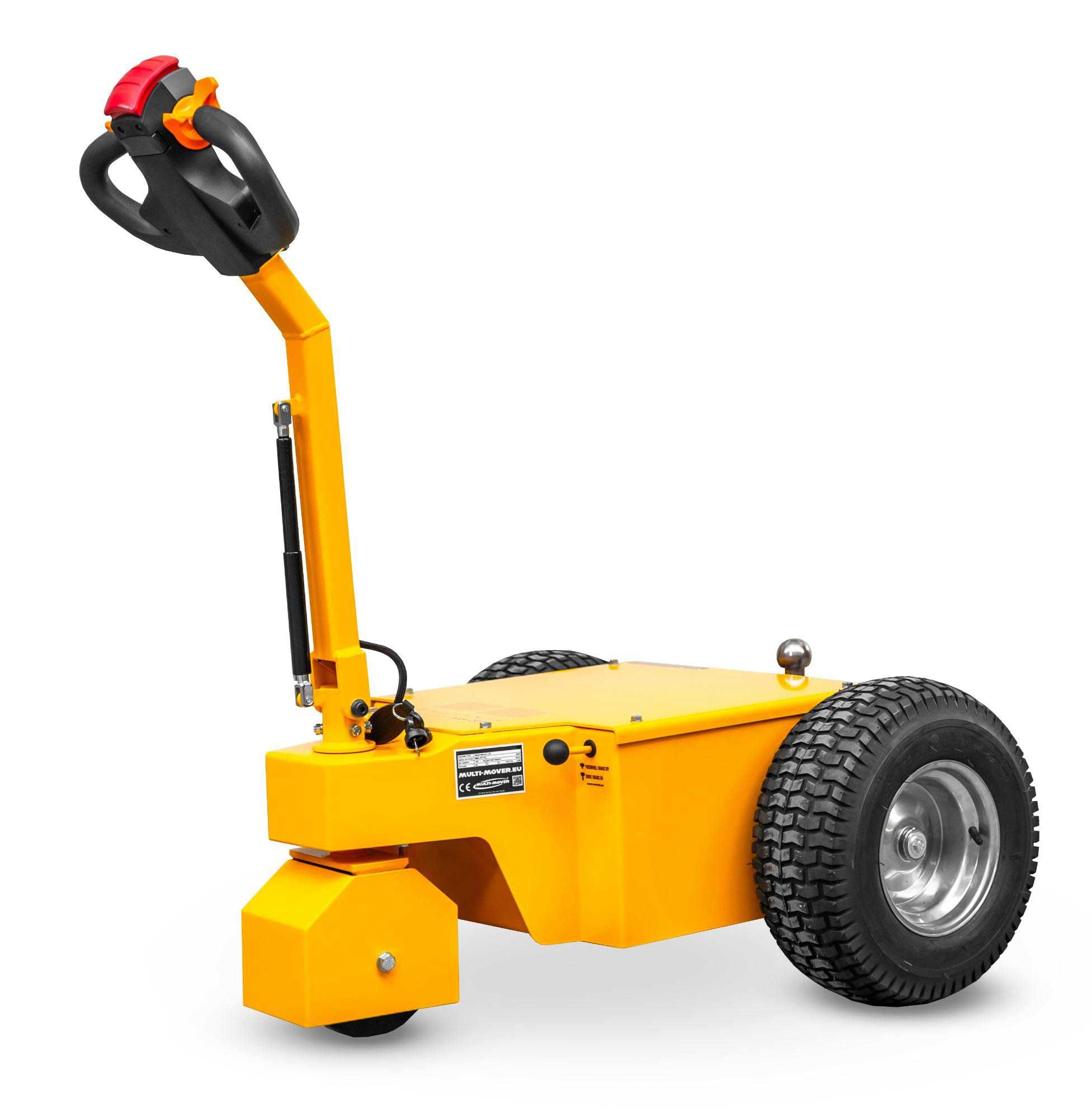

Multi-Mover L25-S
- Motor power 900 Watt 24VDC 180A, maintenance-free
- 2 x 12 Volt 50 Ah battery, maintenance-free, AGM
- Charger 24 Volt 8A High drop charger
- Tractive horizontal force 3000 kg, 1800 Newton
- Pneumatic tyres with 16 inch block treads, 16 cm wide
- Solid rubber swivel castor, ∅ 200 mm
- Control ergonomic tiller head with emergency stop
- Potentiometer for continuously variable maximum speed up to 5 km/h
- Foldable tiller head arm
- Maximum ball pressure 300 kg
- Lock with 2 keys
- Battery indicator
- Error display
- Emergency stop switch on the housing
- Minimum speed is 0.5 km/h
- Tow ball/bolt coupling at 45 cm height
- Conehead /ball head at 65 cm height
- Coupling plate with M12 thread at various heights for couplings
- Working range: 4 to 6 km
- Operating time: 3-4 working days
- 82 w x 120 l x 95 h
- Weight between 300 kg
- 2-year warranty, parts list and instruction manual
- CE and declaration of conformity
-
Supplied complete with 2 batteries (in drive box), external charger and couplings couplings. There are several options to choose from..
Tyre options
Swivel castor options
Extra weight
Total weight 220 KG
Total weight 240 KG
Total weight 280 KG with axle reinforcementHitches
Other options
75A Battery pack
Anti wheely wheels
Pneumatic tyres 15/16 /18 inch foamed
Steering on tiller head
Other RAL colour
Horn
Hour meter
LED light
Flashing light
ATEX
Stainless Steel
