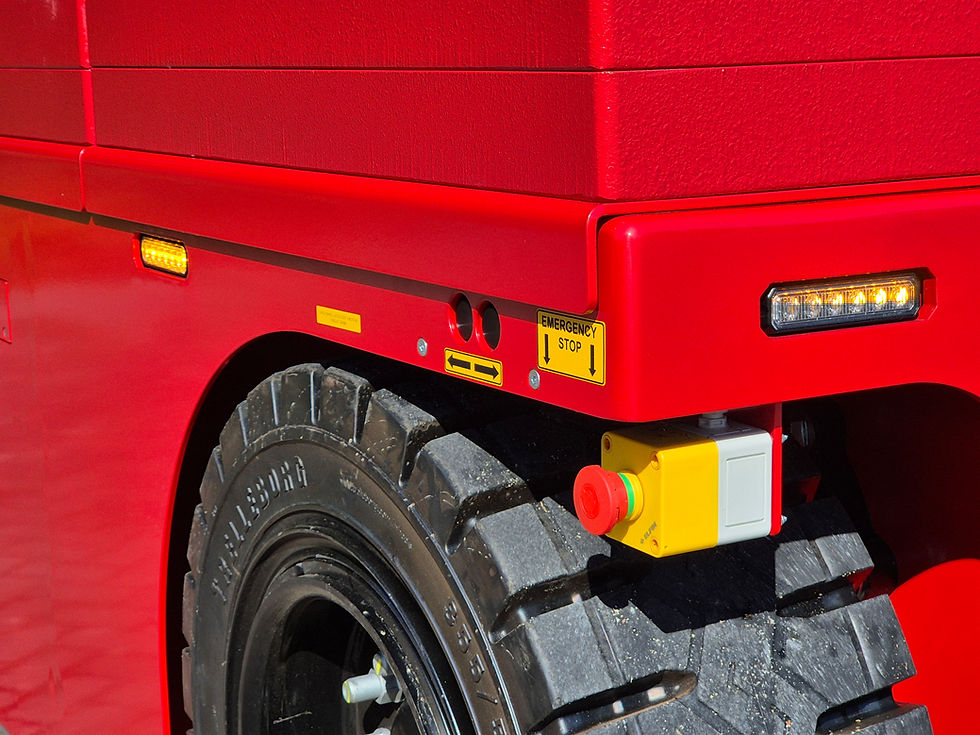

Multi-Mover 5XL 100T

• Engine power 2 x 9.5kW, 19 kW, 48VAC, maintenance-free
• 48V 492AH battery pack lead
• Charger 48 volts 7kW, high frequency external, 3 phase
• Push and Pull 100,000 kg or 38,000 newton horizontal traction
• Engine brake and hydraulic parking brake
• Solid-rubber tyres 29 inch, 355 mm width super elastic
• Ergonomic tiller head with emergency stop, belly button
• Speed reduction system in case excessive cornering speed
• Steerable tiller head with electric power steering
• 2  x 400 mm rubber steering wheels
• 2 Potentiometer, of which 1 continuous setting and pre-sets to 5 km/h
• Emergency stop switch on the housing
• Emergency stop on Tiller head (vertical position)
• Battery, hour and error display
• Warningsystem 4x LED Flashlight optical
• Warningsystem Drive Horn acoustical (F-B,F or B)
• IP54
• Inching forwards and backwards
• Lock with 2 keys
• Horn 90 dB
• Minimum speed is 0.1 km/h
• Coupling thread at various heights for couplings
• Rockinger 560 semi-automatic bolt coupling
• Work area: 4 km
• Operating time: 2-3 workdays
• 2 years warranty, parts list and manual
• CE and Declaration of Conformity

Always supplied with 1 Battery block (in the drive box), external charger and a hitch.

• Massive towing capacity – Handles up to 100,000 kg on flat surfaces and 44,000 kg on a 6% slope
• Electric operation – Zero emissions and low noise for indoor or outdoor use
• Superb manoeuvrability – Electric power steering and ergonomic tiller head for effortless control
• All-terrain capability – Large solid-rubber tyres and excellent ground clearance for rough surfaces
• Safety-first design – Emergency stop, speed reduction in sharp turns, and hydraulic parking brake
• Low maintenance – Maintenance-free motors and long-lasting battery pack

Wheels
Solid Trelleborg Non Marking
Drive Wheel covers

Steering wheels
Steering wheel flaps

Hitches
Have a look here

Steering
Remote control upgrade

Other options
ATEX Zone 1, 21, 2 or 22
Different RAL colour
Back light plug for truck trailers 24 Volt
Brake and Suspension release, yellow and red, 4kW Compressor.
